Specifications:

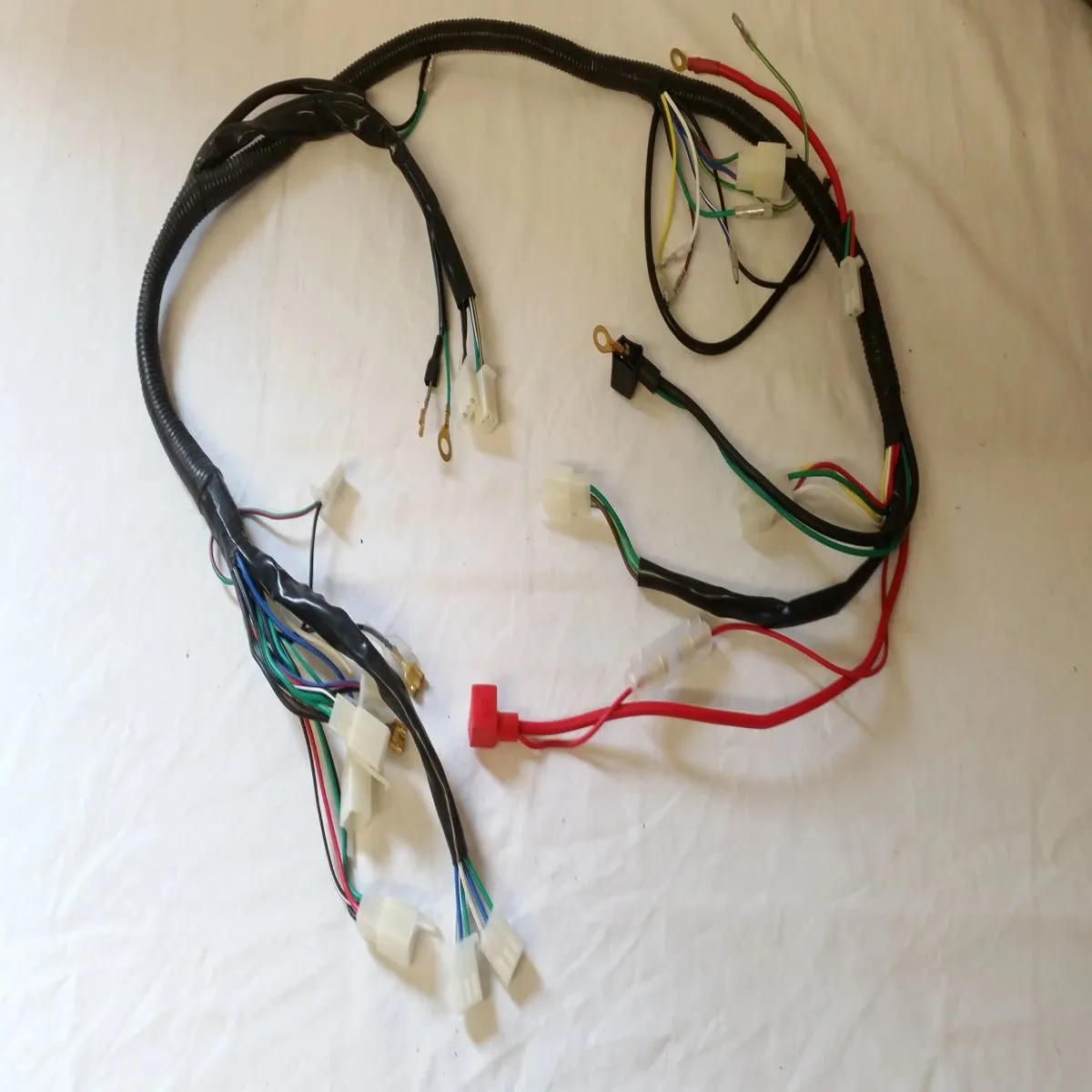

• Wiring For 150 cc Quad Bike
• Please Check Pictures of Connections Before Purchase

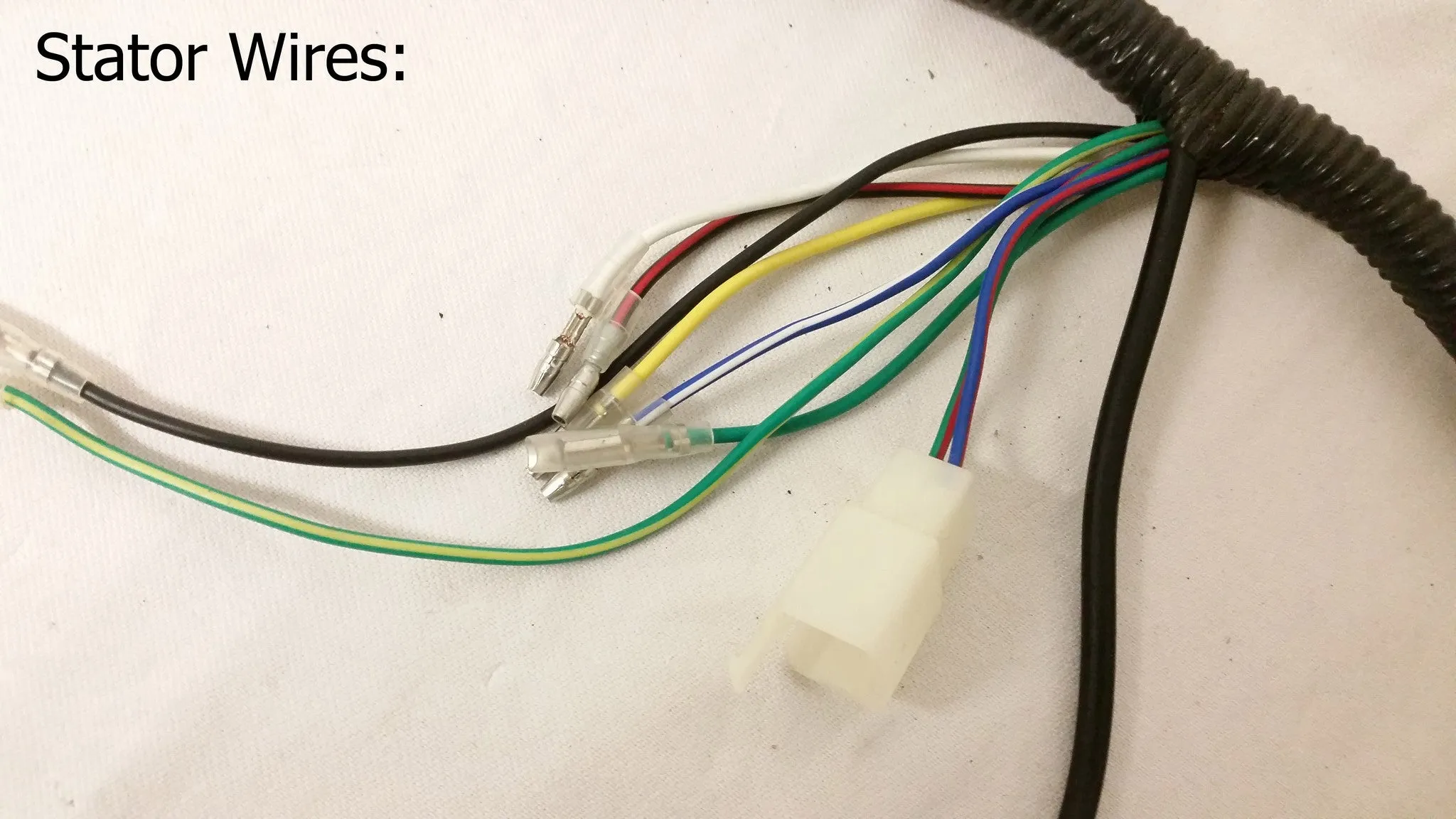

• Stator Wires:(1 x White, 1 x Yellow, 1 x Green, 1 Blue/White, 1 x Black / Red)
• 1 x 6 Pin Plug (2 Active Wires-1 x Blue/Red Stripe, 1 x Green/Red Stripe)
• Pick Up (1 x Black, 1 x Green/ Yellow Stripe)

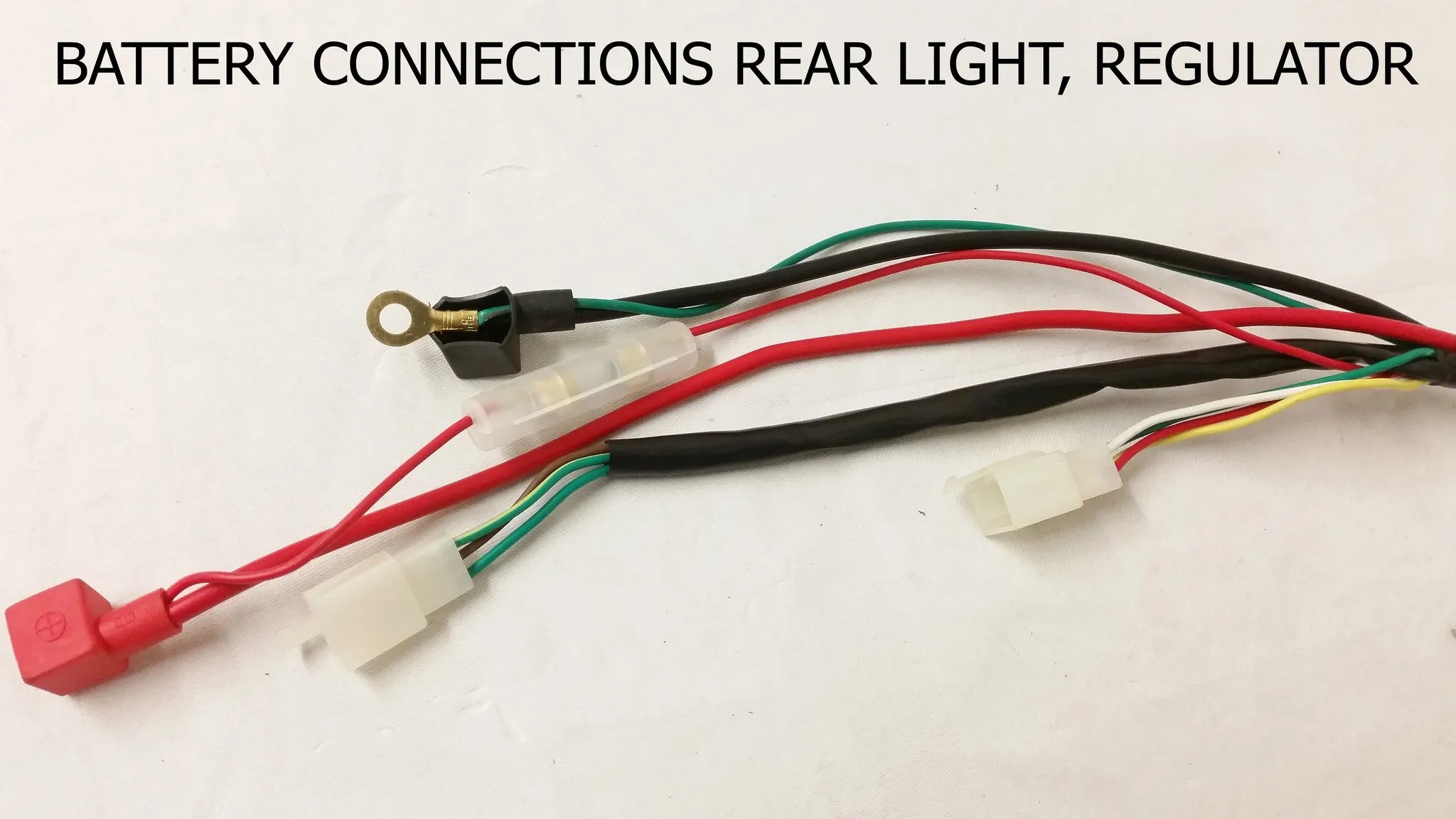

• Regulator: 6 Pin Plug (4 x Wires: Red, Green, Yellow, White)
• Rear Light: 3 Pin Plug (Green, Brown, Green/Yellow Stripe)

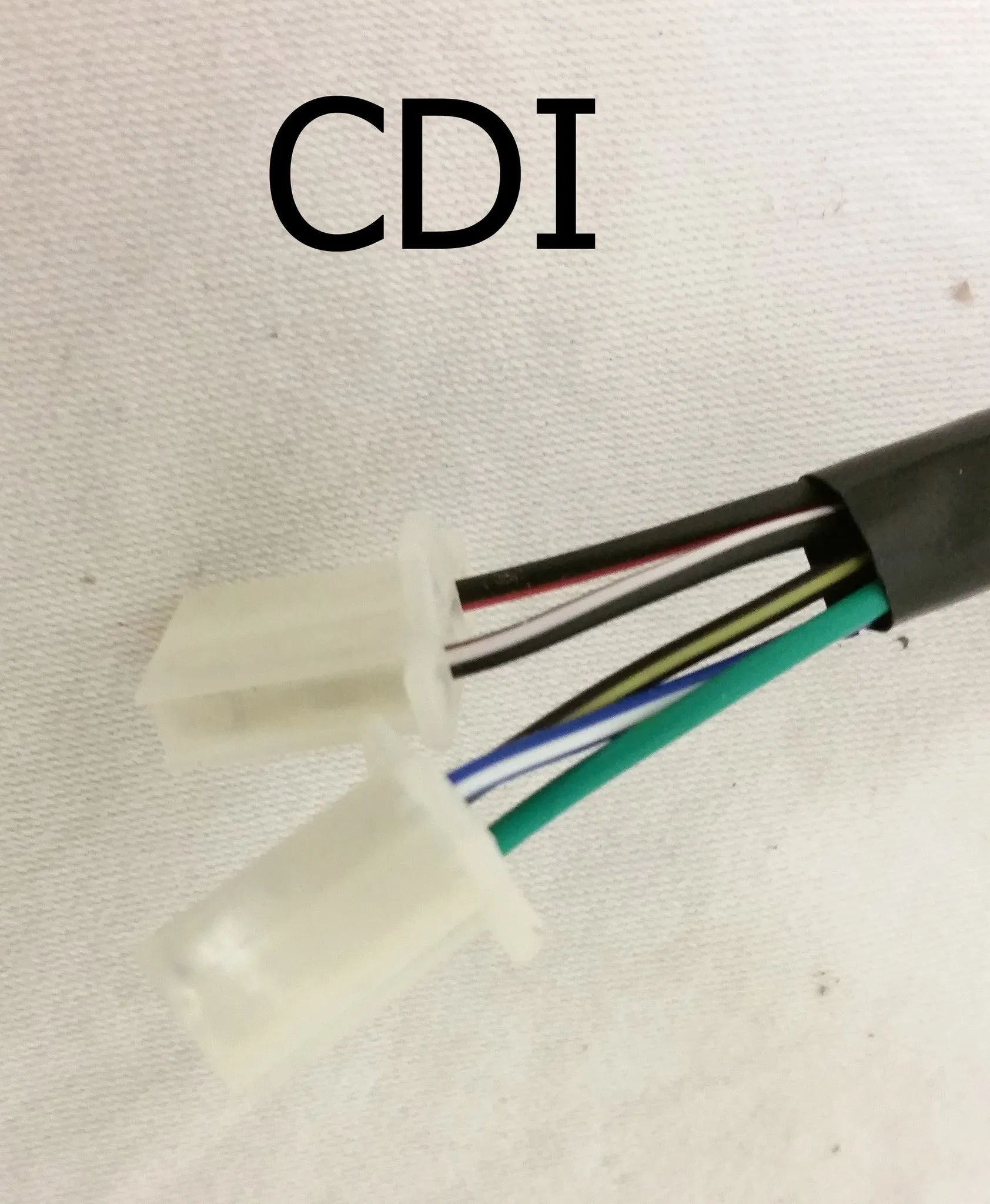

• CDI: 2 Plugs (4 3) , 5 Wires (Green, Black/White Stripe, Black/Red Stripe, black/Yellow Strip, Blue/White Stripe)

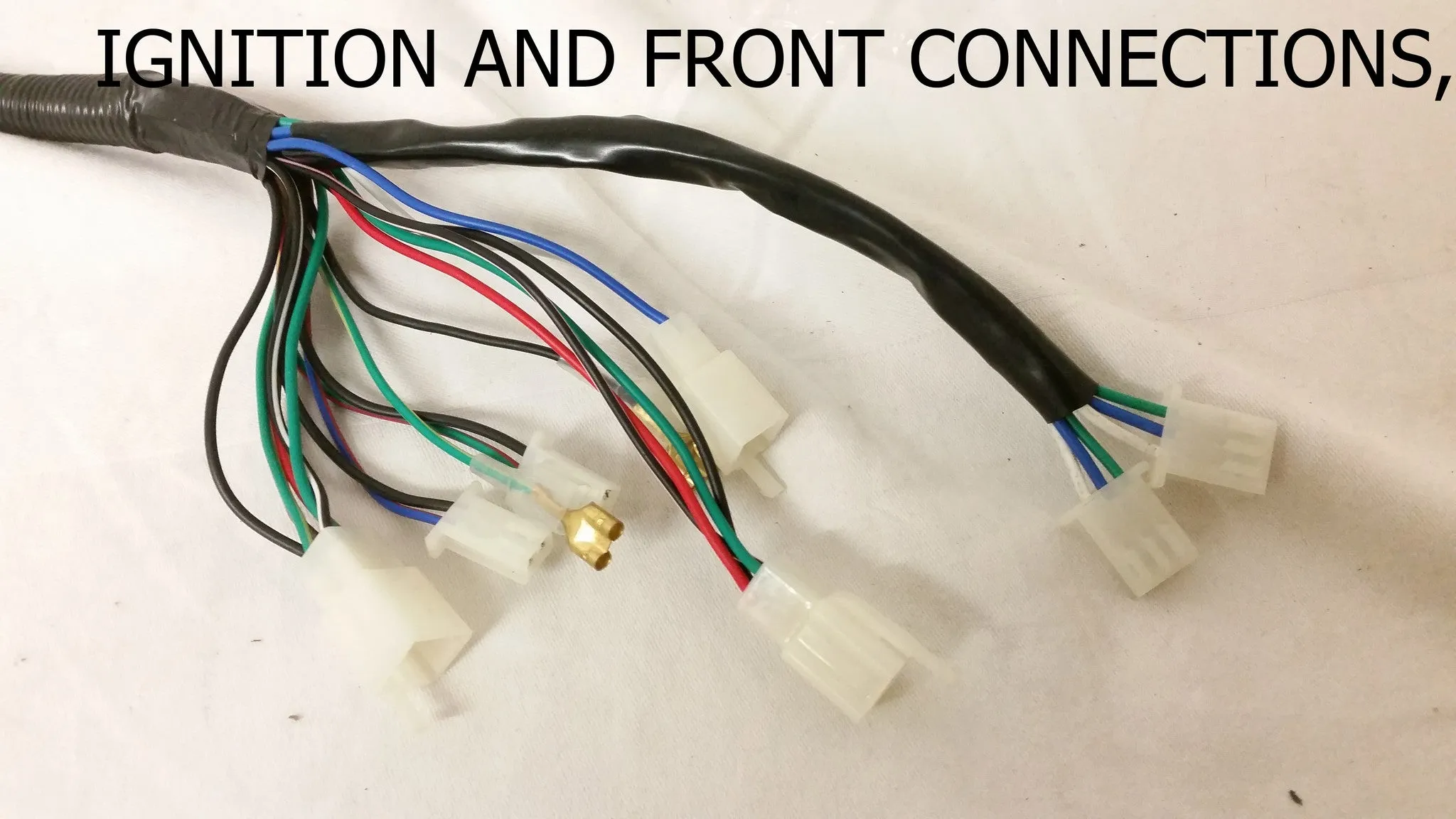

• 4 Pin Ignition, 3 Pin Front Lights, 2 Pin Start/ Kill Switch
